Elbows
Process elbows for high-pressure fluid lines. Manufactured in various radii and angles to fit industrial piping layouts.
STANDARDS
- ASME B16.9
- ASME B16.11
DOWNLOADSFull catalog (PDF)
01TECHNICAL SPECIFICATIONS
Technical specifications
| Parameter | Detail |
|---|---|
| Types | Integral elbows FIG 602 / FIG 1502 and swivel elbows |
| Material | Forged steel |
| Pressure integral FIG 602 | 6,000 psi cold |
| Pressure integral FIG 1502 | 15,000 psi cold |
| Pressure swivel | Up to 6,000 psi |
| Size | 2" across all models |
| Bearings (swivel) | Double row ball bearings with heat-treated hardened races. Low torque, reduced wear. Pressure grease lubricated |
| Swivel configurations | Single, double or triple integral swivel |
| Ends | Threaded or beveled for welding |
| Applications | Mud, test, water, cementing, circulation, choke, stabilization and fracturing lines |
02AVAILABLE VARIANTS AND MODELS
Available variants and models
All sizes and series are manufactured to customer order.

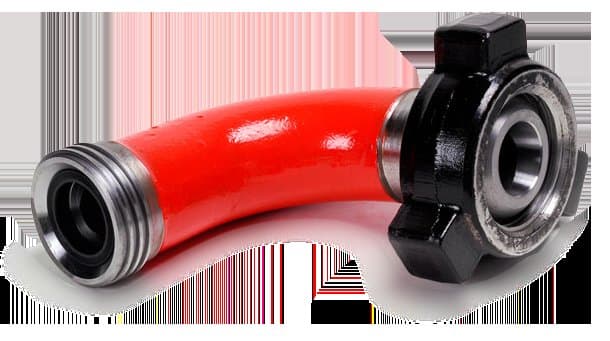

Integral elbow FIG 602
6,000 psi — 2"

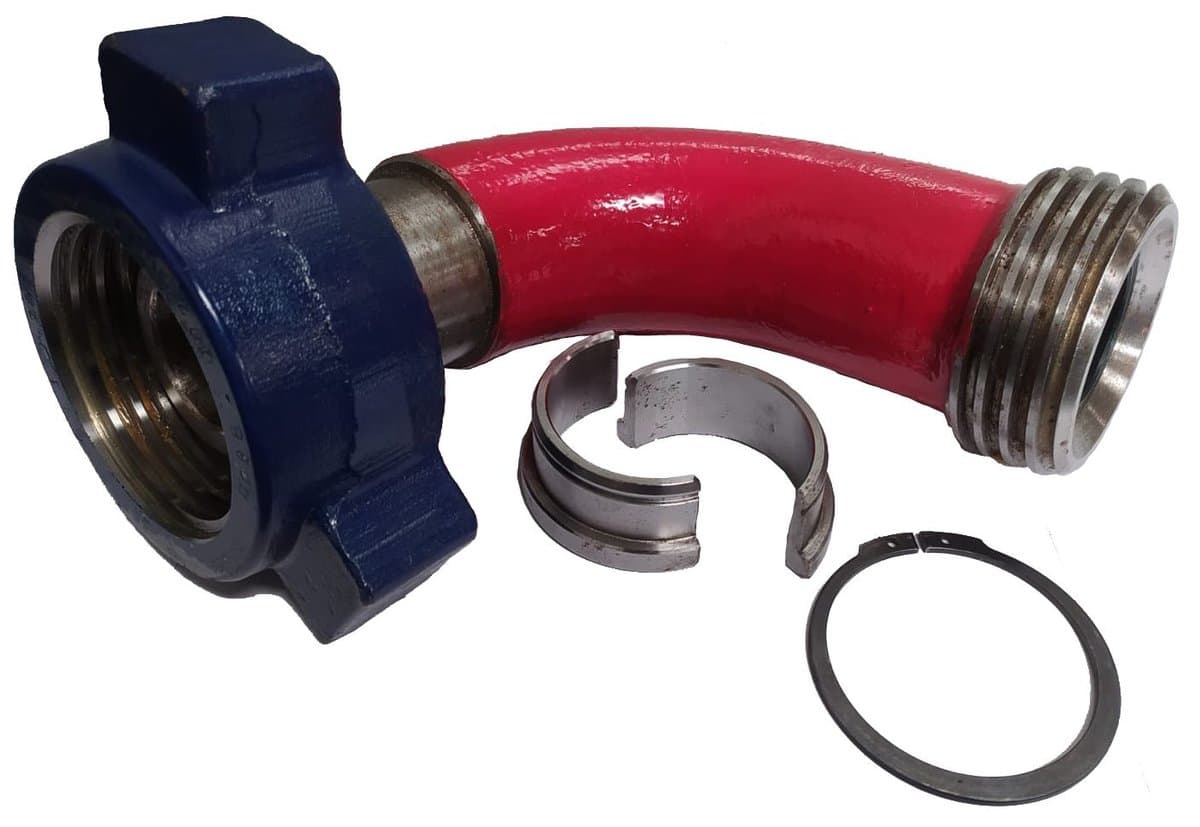

Integral elbow FIG 1502
15,000 psi — 2"

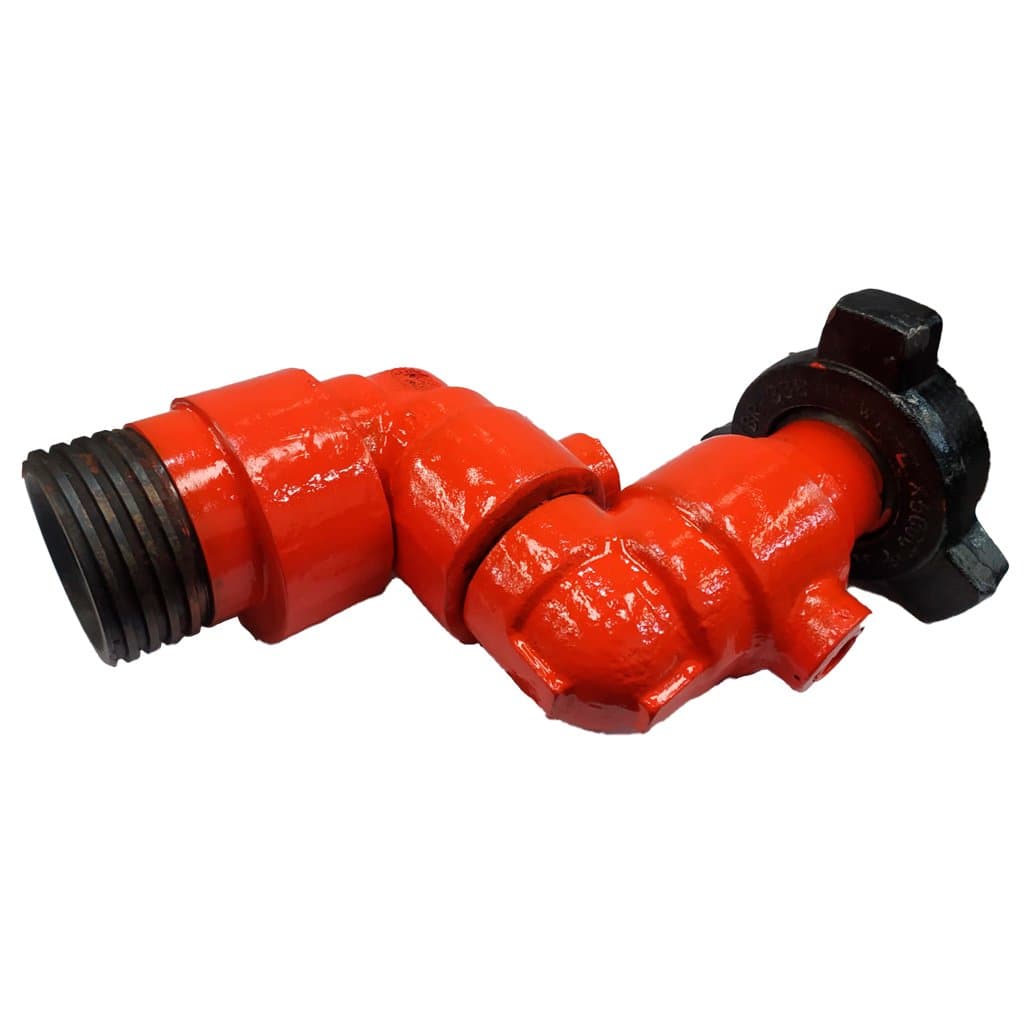

Swivel elbow
6,000 psi — 2" — single, double or triple swivel with ball bearings
03RELATED PRODUCTS
Related products
Industrial valves
Valves for critical high-pressure operations, manufactured from high-strength steel. Designed for environments with severe mechanical and chemical demands, such as injection lines, production, and fluid processing.
- ASME B16.34
- NACE MR0175
Need this product?
Send your inquiry with the technical details and receive a tailored quote.
Request a quote
