VITALMET — PRODUCTS — INDUSTRIAL VALVES

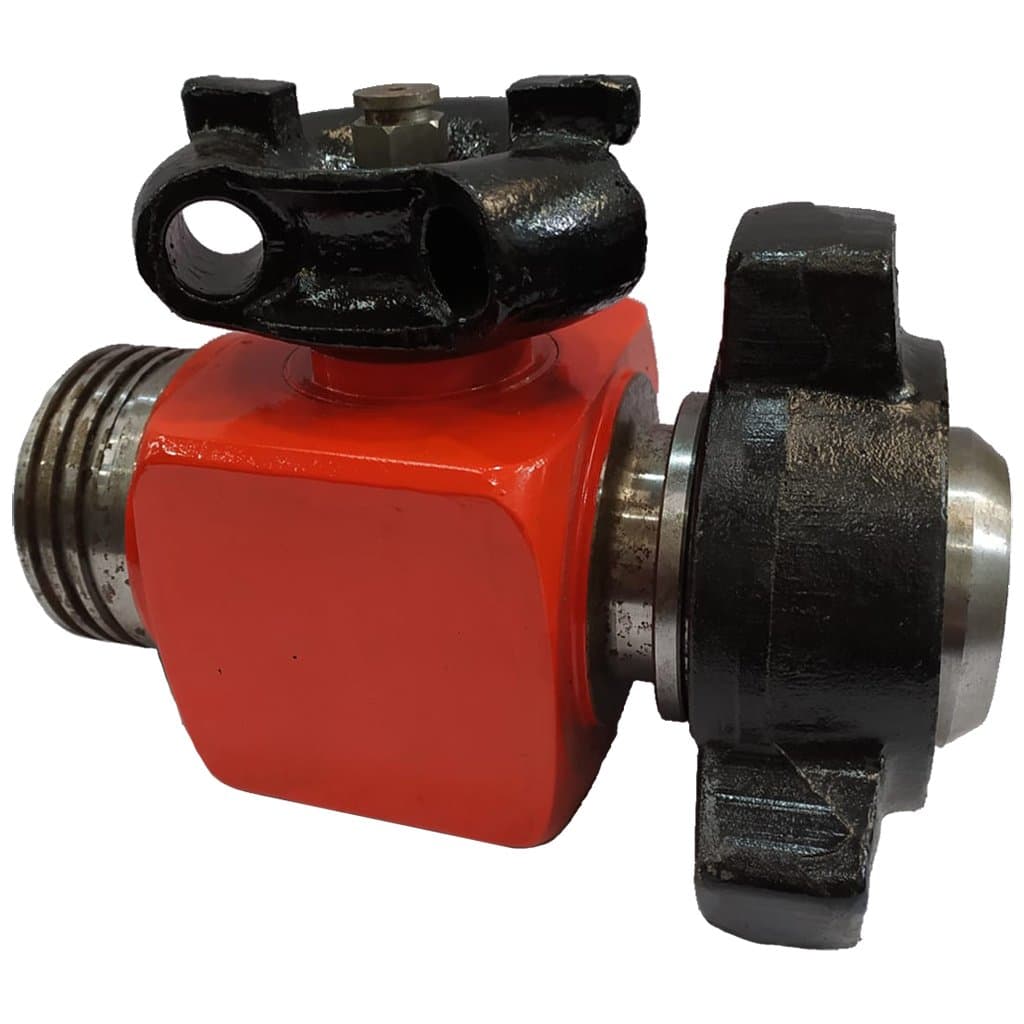

Industrial valves
Valves for critical high-pressure operations, manufactured from high-strength steel. Designed for environments with severe mechanical and chemical demands, such as injection lines, production, and fluid processing.
STANDARDS
- ASME B16.34
- NACE MR0175
DOWNLOADSFull catalog (PDF)
01TECHNICAL SPECIFICATIONS
Technical specifications
| Parameter | Detail |
|---|---|
| Types | Balanced plug, integral balanced plug, expandable seat (VAE) |
| Sizes | 1", 2", 3" and 3" full bore |
| Working pressure | 3,000 to 15,000 psi depending on model |
| Service | Standard and sour service |
| Operation | Piston stem with 4 segments. Quarter-turn handwheel with stop. Open/closed visual indicators |
| Maintenance | In-line with standard tools. VTB repair kits available |
| Compatibility | WECO connections on integral valves |
| Applications | Cementing, fracturing, acidizing, wellheads, manifolds, abrasives and CO2 injection |
02AVAILABLE VARIANTS AND MODELS
Available variants and models
All sizes and series are manufactured to customer order.
Balanced plug valve
1", 2", 3" and 3" full bore

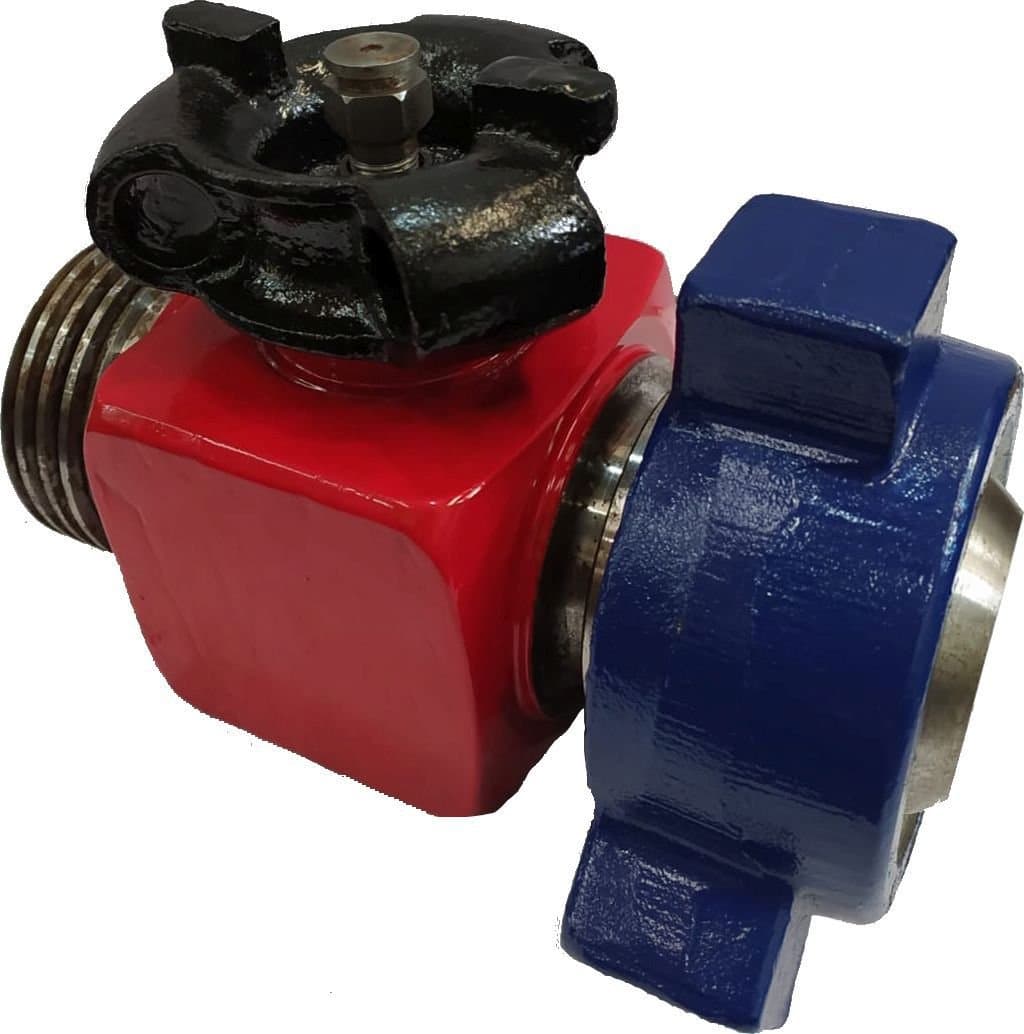

Integral balanced plug valve
FIG 602 and FIG 1502 — up to 15,000 psi
Expandable seat valve (VAE)
3000-5000 psi, threaded or flanged

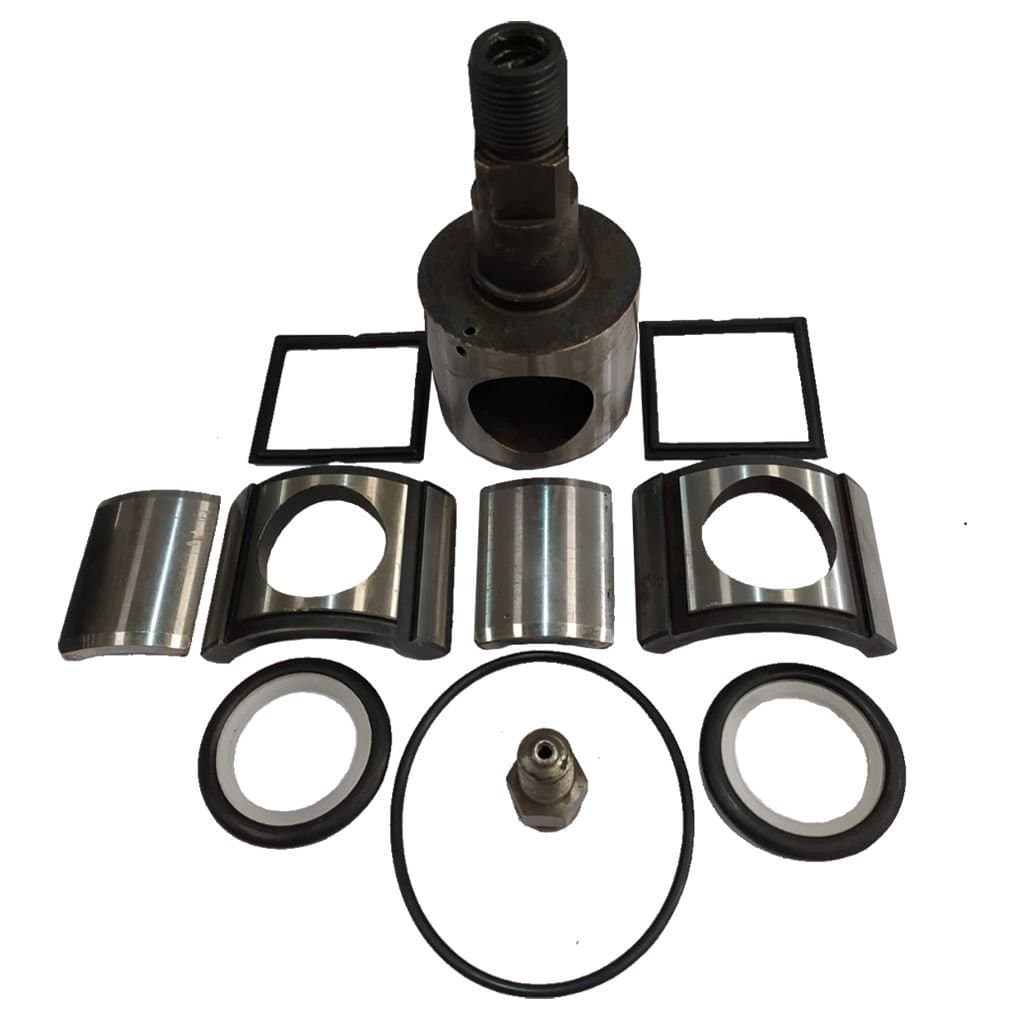

VTB repair kit
For FIG 602 and FIG 1502 (2" and 3")
